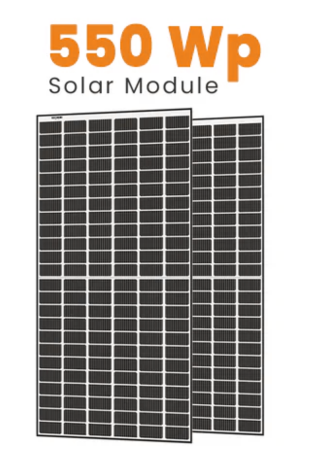

Euro Mono PERC Half-Cut 550 Wp, 144 Solar Cells PV Module (Pack of 2)

With 144 Mono PERC Half-Cut Solar cells, the Euro 550 Wp solar panel boasts cutting-edge technology. In hazy and misty conditions, this panel performs quite well. Additionally, this panel is offered in a bi-facial variant that can absorb sunshine energy from both sides, improving energy output by generating 30%–50% more electricity than conventional mono-facial panels, even in areas with low occupancy. It has MC4 IP68 compliance, which offers excellent dust and waterproofing for long-term dependability. The panel's Half-Cut design lessens the effect of shadows. Both standalone and on-grid systems can use this solar panel.

Electrical Specifications

Module Type : Euro 550

Power (Pm) in watts : 550

No. of Cells : 144

No. of Bus Bars : 10

Voltage at maximum power (Vmp) in volts : 42.74

Current at maximum power (Imp) in Amps : 12.89

Open Circuit Voltage (Voc) in volts : 49.60

Short Circuit Current (Isc) in Amps : 13.72

Maximum system Voltage (VDC) : 1500

Module Efficiency (%) : 21.35%

Mechanical Specifications

Junction Box : IP68 Rated With Diode

Glass : High Transmission Low Iron Tempered Solar Glass

Cells Encapsulate : Ethylene Vinyl Acetate (EVA) - FC/UFC

Back Sheet : Composite Film - White

Frame : Black / Silver Anodized Aluminium Frame with Twin Wall Profile

Mechanical Load Test : Sustain Heavy Wind & Snow Loads (2400 Pa & 5400 Pa or 550 Kg /m2)

Max Series Fuse Test : 30 A

Module Weight (Kg) : 29 kg

Technology : Mono PERC

Annual Electricity Generation (kWh) : 1160
