Euro 590 Wp | N-Type TOPCon Bifacial 16BB (Pack of 2)

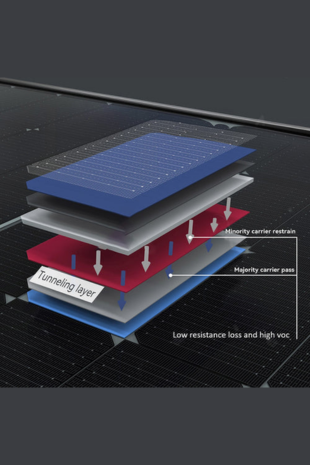

With a high conversion efficiency of up to 22.80%, the Euro Solar 590 Wp panel with cutting-edge TOPCon technology produces an amazing peak power output of 590 Wp. Because of its bi-facial construction, the back side can produce more power, increasing overall efficiency to 25% and raising total output to 700 Wp. With 144 cells and 16 busbars, this cutting-edge solar module guarantees excellent energy production and dependability. Better protection is ensured by its MC4 IP68-rated junction box. The 590 Wp panel is a great option for high-efficiency solar setups since it is built for optimal performance.

Electrical Specifications

Module Type : 590 Wp bifacial

Maximum Power (Pmax) [W] : 590

Operating voltage [V] : 24

Maximum Power Voltage (Vmp) [V] : 43.50

Maximum Power Current (Imp) [A] : 13.57

Open Circuit Voltage (Voc) [V] : 51.00

Short Circuit Current (Isc) [A] : 14.45

Module Efficiency [%] : 22.80%

Additional Features : Better Weak Illumination Response

ZERO LID (Light Induced Degradation)

Mechanical Specifications

Panel Technology : TOPCon

Space Required : 7.47 x 3.72 =27 sq ft

Number of cells : 144 Cells (12x6) (12x6)

Number of Bus bars : 16BB

Module Dimension : (2278 L x 1134 W x 30 D) mm

Weight : 31 kg

Double Glass : AR-coating toughened glass, 2+2 mm

Frame : Black Anodized Aluminium

J-Box : Split Junction-Box (IP68)

Cable : 400 mm, 4 m²

Connector : MC4 IP68 compatible

Maximum Test Load, Push/Pull : 5400 Pa / 2400 Pa

Additional Features : Better temperature coefficient

10-30% Additional Power/Energy generation
