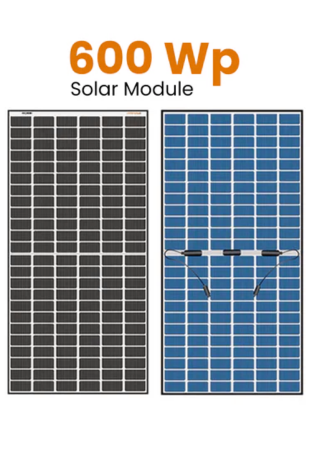

Euro 600 Wp | N-Type TOPCon Bifacial 16BB (Pack of 2)

With a high conversion efficiency of up to 23.23%, the Euro Solar 600 Wp panel with cutting-edge TOPCon technology produces an amazing peak power output of 600 Wp. Because of its bi-facial construction, the back side can produce more power, increasing overall efficiency to 25% and raising total output to 700 Wp. With 144 cells and 16 busbars, this cutting-edge solar module guarantees excellent energy production and dependability. Better protection is ensured by its MC4 IP68-rated junction box. The Euro 600 Wp panel is a great option for high-efficiency solar setups since it is built for optimal performance.

Electrical Specifications

Module Type : 600 Wp Bifacial

Maximum Power (Pmax) [Wp] : 600

Operating voltage [V] : 34.6

Maximum Power Voltage (Vmp) [V] : 44.78

Maximum Power Current (Imp) [A] : 13.14

Open Circuit Voltage (Voc) [V] : 51.19

Short Circuit Current (Isc) [A] : 14.13

Module Efficiency [%] : 23.23

Additional Features : Better Weak Illumination Response ZERO LID (Light Induced Degradation)

Mechanical Specifications

Solar Cell Type : N-Type

Panel Technology : TOPCon 182 x 91 mm

Space Required : 7.42 x 3.72 =24 sq ft

Number of cells : 144 Cells (12x6) (12x6)

Number of Bus bar :16BB

Module Dimension (L x W x D) : (2278 x 1134 x 30) mm

Weight : 30 kg

Double Glass : AR-coating toughened glass, 2+2 mm

Frame : Black Anodized Aluminium

J-Box : Split Junction-Box (IP68)

Cable : 400 mm, 4 m²

Connector : MC4 IP68 compatible

Maximum Test Load, Push/Pull : 5400 Pa / 2400 Pa

Additional Features : Better temperature coefficient

10-30% Additional Power/Energy generation
