625 WP

Euro 625 Wp N-Type TOPCon G12R Dual Glass Bifacial Solar Panel(Pack of 36)



A next-generation, ultra-high performance solar panel, the Euro Solar 625 Wp N-Type TOPCon is built for maximum power generation, exceptional dependability, and long-term durability. This panel performs well even in low light and challenging settings with to its innovative half-cut MBB cell technology, bifacial power output, and up to 23.25% efficiency.

With a 30-year performance warranty and a 15-year product warranty, the Euro 625 Wp, designed for residences, business projects, industries, and utility-scale installations, guarantees reduced LCOE, increased output, and a longer lifespan.




layers-img2 layers-img2 layers-img2
Electrical Specifications
  • Peak Power Pmax (W) : 625
  • Maximum Power Voltage Vmp (V) : 41.18
  • Maximum Power Current Imp (A) : 15.18
  • Open Circuit Voltage VOC (V) : 48.95
  • Short Circuit Current ISC (A) : 16.09
  • Module Efficiency (%) : 23.25
  • Power Tolerance (W) : 0+2
  • No. of Bus Bars : 16BB
  • *STC: automatic mass AM1.5, irradiance 1000 W/m2, cell temperature 25°C

    Mechanical Specifications
  • Number of Cells : 132 pieces (11*6)

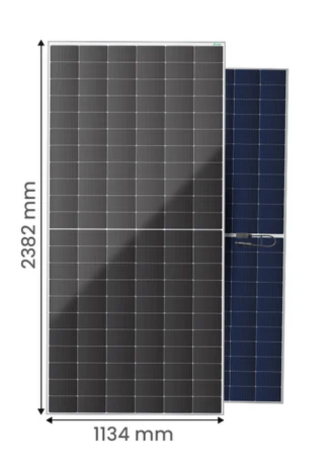

  • Module Dimensions : 2382*1134*30mm
  • Weight : 33.0 Kg
  • Front Glass : 2.0 mm, ARC Tempered glass
  • Back Glass : 2.0 mm, Semi-ARC tempered glass
  • Frame : Anodized aluminium alloy
  • Junction Box : IP68 rated
  • Cable : 4.0 mm
  • No. of Diodes : 3
  • Wind Pressure / Snow Pressure : 2400 Pa / 5400 Pa
  • Connector : MC4
