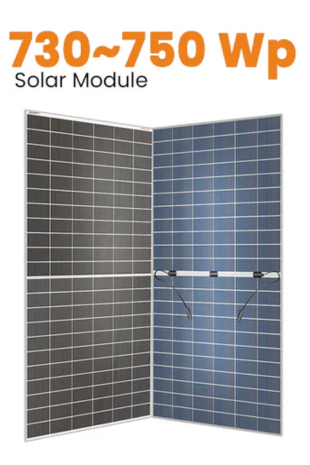

Euro 730~750 Wp HJT Dual-Glass Solar Panel (Pack of 33)

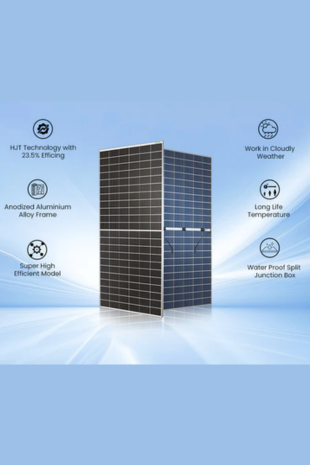

The Euro 730-750 W HJT Dual-Glass Solar Panel, which uses state-of-the-art Heterojunction Technology (HJT) for exceptional performance, is Euro Solar's most recent invention. This cutting-edge panel is perfect for solar farms, ground-mounted systems, and residential, commercial, and industrial projects due to its high conversion efficiency of up to 23.5%. With a combined efficiency of up to 23.50% (front + rear side), it produces an amazing peak power output of 795 Wp. It has three bypasses and an IP68-rated junction box for increased security. Designed with 132 cells, it maximizes energy generation, further boosting output by up to 20%. It is a strong and effective option for high-performance solar systems since it increases power production by 7–20% when installed at a height of 1.5 meters.

Electrical Specifications

Peak Power Pmax (W) : 730

Maximum Power Voltage Vmp (V) : 43.00

Maximum Power Current Imp (A) : 16.98

Open Circuit Voltage VOC (V) : 51.00

Short Circuit Current ISC (A) : 17.80

Module Efficiency (%) : 23.50

Power Tolerance (W) :0~+5

No. of Bus Bars : 24/18

*STC: automatic mass AM1.5, irradiance 1000 W/m2, cell temperature 25°C

Mechanical Specifications

Number of Cells : 132 pieces (6*22)

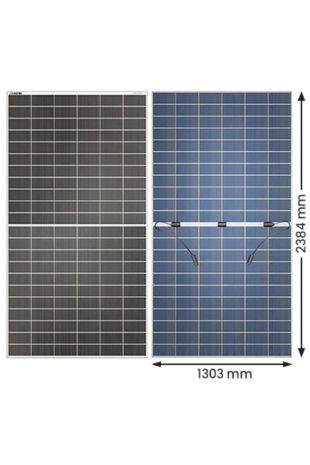

Module Dimensions : (2384*1303*33) mm

Weight : 38.3 kg

Front Glass : 2.0 mm, High transmission coated glass

Back Glass : 2.0 mm, Semi-tempered glass

Frame :Anodized Aluminium alloy

Junction Box : IP68 rated

Cable : 4.0 mm

No. of Diodes : 3

Wind Pressure / Snow Pressure : 2400 Pa / 5400 Pa

Connector : MC4
